Diagramming System Design: Amazon S3 Storage System

Amazon’s Simple Storage Service (S3), launched in 2006, is a highly scalable and durable cloud object storage service. It is a massively scalable storage service that utilizes object storage technology, emphasizing its durability, availability, and performance.

It has become a standard in the industry, widely adopted not just by Amazon Web Services (AWS), but also by providers like Cloudflare, Backblaze, and Google Cloud Storage. Known for its simplicity, cost-effectiveness, and virtually unlimited capacity, S3 is an essential system for storing large volumes of unstructured data.

What is Amazon S3?

Amazon S3 is a cloud storage service provided by AWS (Amazon Web Services), designed to handle vast amounts of data with high availability and scalability.

It provides a reliable and scalable way to store and retrieve data from anywhere on the internet. It’s been designed for use cases like data lakes, backups, and disaster recovery, and can handle objects up to 5 TB in size.

Managing and securing data stored on Amazon S3 is crucial, with features like encryption, access control, and various storage classes tailored to different data retention needs.

S3 stores objects (data files) in buckets, and these objects can be accessed from anywhere in the world. It’s designed to store a virtually unlimited amount of data, making it ideal for applications ranging from simple websites to large-scale data processing systems.

Key Features of Amazon S3:

• Scalable: S3 automatically scales to accommodate your storage needs without requiring any manual intervention.


• Highly Available: Amazon S3 provides 99.99% availability, ensuring your data is always accessible.


• Durable: The service is designed for 99.999999999% (11 nines) durability, ensuring that your data is protected.



Amazon S3 Storage Classes

Overview of Storage Classes

When designing systems that incorporate S3, one of the key considerations is selecting the right storage class. Amazon S3 offers multiple storage classes, each designed for different use cases based on the frequency of access, storage costs, and data retrieval needs.

Storage Class Options for Infrequently Accessed Data

1. S3 Standard

The S3 Standard storage class is the default choice for storing frequently accessed data. It offers low-latency and high-throughput performance, making it suitable for a variety of use cases, including big data analytics, web applications, and content distribution.

• Use Case: Frequently accessed data, real-time web applications, and dynamic content.



2. S3 Standard-IA (Infrequent Access)

The S3 Standard-IA storage class is designed for data that is accessed less frequently but needs to be available when required. It offers lower storage costs than S3 Standard but has higher retrieval costs.

• Use Case: Backup and disaster recovery, archival data that is infrequently accessed.

3. S3 One Zone-IA

The S3 One Zone-IA storage class is similar to Standard-IA but stores data in a single availability zone, reducing costs further. However, it provides lower resilience and is best suited for non-critical data.

• Use Case: Non-critical, easily reproducible data that doesn’t require the resilience of multiple availability zones.

Storage Class Options for Frequently Accessed Data

4. S3 Glacier Instant Retrieval

Tailored for archive data that needs to be accessed quickly. It provides a low cost of $0.004 per GB-month, making it suitable for data that is rarely accessed but requires immediate retrieval.

• Use Case: Archived video footage that is rarely accessed but needs immediate retrieval for inspections.

‍

5. S3 Glacier Flexible Retrieval

Is designed for archive data with flexible retrieval times, offering a lower cost of $0.0036 per GB-month. It is ideal for data that can tolerate longer retrieval times.

• Use Case: Backed-up datasets for large-scale research projects that can tolerate longer retrieval times.

‍

6. S3 Glacier Deep Archive

This is the most cost-effective option for long-term archive data, priced at $0.00099 per GB-month. It is perfect for data that is rarely accessed and can tolerate longer retrieval times.

• Use Case: Old log files from applications that are rarely accessed but need to be preserved for regulatory compliance.

Each storage class in Amazon S3 is designed to provide a balance between cost and performance, allowing users to optimize their storage costs while ensuring data availability and durability.

By selecting the appropriate storage class, users can effectively manage their storage costs and meet their specific data access requirements.

Here's your article reworked and optimized for SEO while maintaining the original structure and improving readability:

How Amazon S3 Works: Understanding Cloud Object Storage

Amazon S3 is designed around the concept of object storage, where data is stored as objects within buckets. Each object consists of the actual data, metadata, and a unique identifier. S3 handles these objects across its distributed infrastructure, offering high durability and scalability.

S3 ensures high data durability by replicating objects across multiple availability zones within a region. This replication guarantees that even if one zone fails, your data remains accessible from another zone. S3’s 99.999999999% (11 nines) durability ensures that your data is safe and always available.

Furthermore, S3 is highly scalable, enabling users to store an unlimited number of objects without worrying about underlying infrastructure. S3 handles requests via REST APIs and scales effortlessly to meet growing storage demands.

How Amazon S3 Scales and Integrates

S3 is tightly integrated with other AWS services, offering flexibility for various workloads. For example:

• AWS Lambda for event-driven data processing


• Amazon CloudFront for fast content delivery


• S3 Glacier for low-cost archival storage



This wide integration makes S3 ideal for a range of applications, from big data analytics to backup and disaster recovery solutions.

Object Storage vs. File and Block Storage

Amazon S3 utilizes object storage, which is different from traditional file storage and block storage systems.

1. Block Storage

Block storage divides data into fixed-size blocks (512 bytes to 4 KiB), each with a unique address. It is mainly used for database and file systems where data is managed in blocks.

2. File Storage

File storage sits on top of block storage and organizes data in a hierarchical file system. It is easy to manage and ideal for general data storage but lacks the scalability of object storage.

3. Object Storage

Unlike file and block storage, object storage stores data in a flat structure. This approach makes object storage more scalable, offering low-cost storage solutions at the expense of write speed.

In Amazon S3, an object consists of:

• Data: The actual content, such as an image or document.


• Metadata: Key-value pairs describing the data (e.g., file type, size, and upload date).


• Unique Identifier: A unique URI used to access the object.



Example URI:
https://s3.example.com/album/picture.png
Here, "picture.png" is the object and "album" is the bucket. While buckets store objects, they are essentially containers for metadata, not data themselves.

Buckets cannot be nested inside other buckets, but we can achieve nesting by having the object name resemble a filepath, with  /  delimiters. The section of the object name up to the last delimiter is known as a “prefix”, often used when querying. For example:

URI: https://s3.example.com/album/2023/september/picture.png
Bucket name: album
Object name: /2023/september/picture.png
Prefix: /2023/september/

This layout where data and metadata are separate but associated is a callback to Unix filesystem design, where the inode (or index node) stores pointers to the blocks on disk that contain all the bits that make up the actual data.

High-Level System Design of Amazon S3

To build a scalable, high-performance storage system like Amazon S3, we need to design multiple interconnected services:

1. Data Service: Manages reading and writing objects to disk.


2. Metadata Service: Handles object metadata, including object names, IDs, and storage locations.


3. API Service: Allows users to interact with the system via requests.


4. Identity and Access Management (IAM): Ensures secure user authentication and authorization.



Key Operations in S3

Three core operations form the backbone of S3:

• Bucket Creation


• Object Upload


• Object Download



Let's dive deeper into each operation.

1. Creating a Bucket

When a user requests to create a bucket, an HTTP PUT request is sent to the API service. The API service validates the request using IAM for authentication and authorization. Once the request is authorized, the metadata service stores the bucket information in a dedicated metadata database. Finally, the API service returns a success message.

1. The client sends an HTTP PUT request to create a bucket.
2. The client’s request reaches the API service, which calls identity and access management (IAM) for authentication and authorization.
3. A bucket, as we mentioned, is merely metadata. On successful auth, the API service calls the metadata service to insert a row in a dedicated buckets table in the metadata database.
4. The API service returns a success message to the client.

2. Uploading an Object

After the bucket is created, users upload objects via an HTTP PUT request. The API service authenticates the user and checks their permissions. The payload is passed to the data service, which stores the object and generates a unique identifier (ID). The metadata service stores the object’s metadata in the database, including its bucket ID and name.

1. With the bucket created, the client sends an HTTP PUT request to store an object in the bucket.
2. The API service calls IAM to perform authentication and authorization. We must check if the user has write permission on the bucket.
3. The API service forwards the client’s payload to the data service, which persists the payload as an object and returns its id to the API service.
4. The API service next calls the metadata service to insert a new row in a dedicated objects table in the metadata database. This row holds the object id, its name, and its bucket_id, among other details.
5. The API service returns a success message to the client.

3. Downloading an Object

To retrieve an object, the user sends an HTTP GET request. The API service first authenticates the user and verifies read permissions, via calling IAM. Next, the object name is mapped to its unique ID in the metadata service, and the data service retrieves the object by ID. The object is then sent back to the client.

1. The client sends an HTTP GET request, specifying a name, to retrieve the object.
2. The API service calls IAM to perform authentication and authorization. We must check that the client has read access to the bucket.
3. Since the client typically sends in the object name (not its id), the API service must first map the object name to its id before it can retrieve the object. Hence, on successful auth, the API service calls the metadata service to query the objects table to locate the object id from its name.
   Note how, in the download flow, we visit the metadata service before the data service, as opposed to the upload flow.
4. Having found the object id, the API service sends it to the data service, which responds with the object’s data.
5. The API service returns the requested object to the client.

Low-Level Design of S3’s Data Service

In our high-level design, two services are S3-specific and do most of the heavy lifting: the data service and the metadata service. Let’s dig into their details, starting with the most important one.

When considering replication, it's crucial to understand the costs and performance associated with data transfer to and from storage nodes. This includes evaluating transfer charges and the impact of different transfer methods on overall expenses.

Amazon S3 data Service

The data service needs to be able to write and read a sequence of bytes to and from disk. In this context, a disk is often a hard disk drive (HDD) or solid-state drive (SSD); it can also be a network-attached storage (NAS) device, or even a virtual disk in a cloud environment.

For our purposes, a storage node is a group of any such disks, i.e., a bundle of space to write to and read from, and our data service will be responsible for managing these nodes. For fault tolerance, the data service will also need to replicate data across multiple storage nodes, each sending back a heartbeat to allow the data service to distinguish healthy nodes from failed nodes.

Amazon S3 allows users to store data as objects organized in buckets, offering various storage classes for different use cases such as mission-critical data or archival storage.

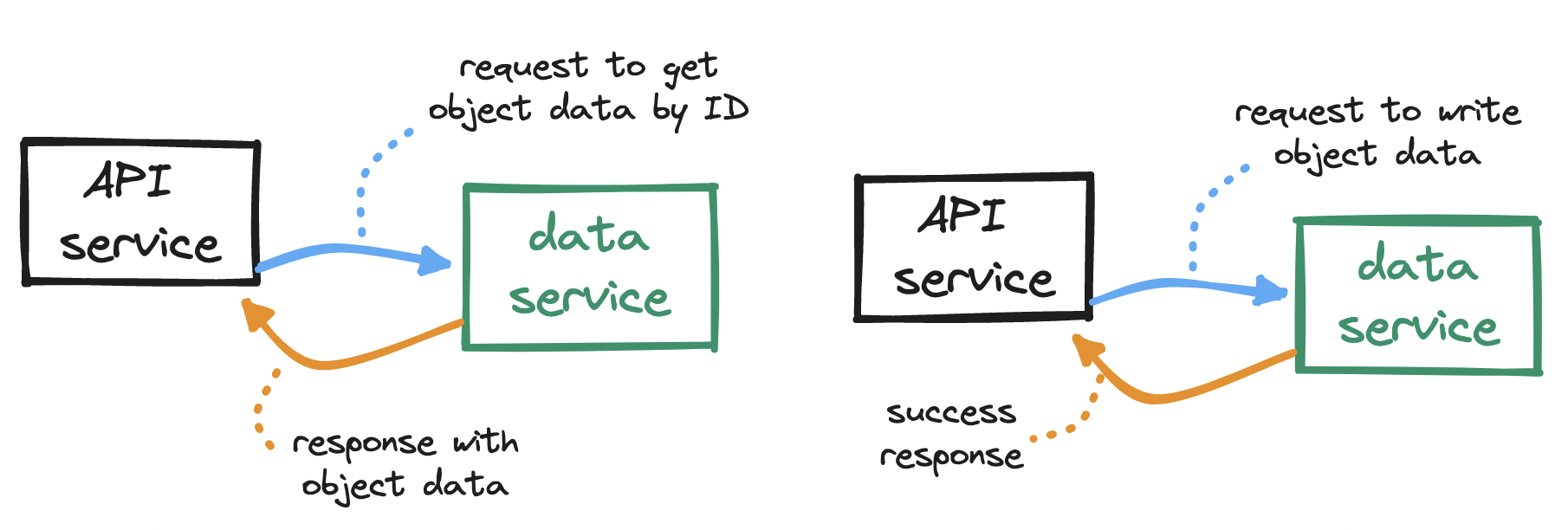

How do storage nodes fit into our design? Remember the interactions between the API service and the data service:

To serve requests from the API service, our data service will need to:

• monitor the health of all storage nodes,
• locate nodes to write to, distributing writes consistently,
• locate storage nodes to read from, distributing reads consistently,
• write objects to, and read objects from, storage nodes,
• replicate objects across storage nodes.

These operations can be grouped. For example, we can group the first three into a selector subservice, and the last two into a reader-writer subservice.

When it comes to replication, either for S3 or more generally, remember to keep in mind the tradeoff between consistency and latency. We may choose to write to a single node, respond immediately and replicate later, at the cost of data loss in case of replication failure; or we may choose to wait for partial or full replication before responding, at the cost of increased latency.

Let’s keep drilling down. How exactly do we write to a storage node?

The naivest solution would be to write each object as a single file in the storage node. However, each block is typically 4 KiB in size, so any objects smaller than this will waste disk space. What we need is a more compact way to store objects, ideally similar to how blocks work, but for objects.

To make the most out of our disk, we can write multiple small objects into a larger file, commonly known as a write-ahead log (WAL). That is, we append each object to a running read-write log. When this log reaches a threshold (e.g. 2 GiB), the file is marked as read-only (“closed”), and a new read-write log is created to receive subsequent writes. This compact storage process is what accounts for S3 objects being immutable.

But how do we find an object across all these log files? Searching for an object with no indication of where it may have been written to (“sequential scan”) is not scalable.

To enable fast reading, we can embed a small database in the storage node (e.g. sqlite) to hold location details. Immediately after appending an object to the running read-write file, we turn to this embedded DB and store the object id, log filename, how far away the object is from the start of the file (its offset), and the object size. With these location details, we can later query the embedded DB and quickly find any object across all the log files in a storage node.

Amazon S3 metadata service

Our metadata service is simpler. This service will need to...

• store metadata for buckets, for the bucket creation flow,
• store metadata for objects, for the object upload flow,
• find an object's metadata given its name, for the object download flow,

Hence our two tables may look like this:

Typically, S3 systems cap the number of buckets allowed per user, so the size of our buckets table will remain bounded. If each user has set up 20 buckets and each row takes up 1 KiB, then one million users will require ~20 GiB. This can easily fit in a single database instance, but we may still want to consider provisioning read replicas, for redundancy and to prevent a bandwidth bottleneck.

The objects table, on the other hand, will grow unbounded. The number of rows, conceivably in the order of billions, will exceed the capacity of any single database instance. How can we partition ("shard") this vast number of rows across multiple database instances?

• If we shard by object.bucket_id, causing objects in the same bucket to end up in the same partition, we risk creating some partitions that will handle much more load than others.
• If we shard by object.id, we can more evenly distribute the load. But remember: when we download an object, we call the metadata service and pass in both object.name and object.bucket_name in order to find object.id, which we then use to locate the actual data. As a result, this sharding choice would make a major query in the object download flow less efficient.

Hence we need a composite key. Given that an object's identifier is a combination of its name and bucket_name, we can hash both values into a single sharding key to even out the load, while also supporting the object download flow.

Expanding our system

‍

How would our design fare when expanding the system? Let’s consider a few more common features of S3 systems and how we could support them.

Data integrity is a key feature of S3. To prevent object loss, we have implemented heartbeats and replication across storage nodes, but this only defends against total node failure. What about data corruption in otherwise healthy nodes?

We need a guarantee that the data we read is the same as the data we wrote. One solution is to generate a fixed-length fingerprint (“checksum”) from each sequence of bytes we write, and to store that fingerprint alongside the sequence. Consider a fast hash function like MD5. Later, at the time of retrieval, immediately after receiving data, we generate a new checksum from the data we received, and compare the new checksum to the stored one. A mismatch here will indicate data corruption.

Another key feature of S3 is its vast storage space. To make the most out of our disk, we rely on a write-ahead log to store objects and a small embedded DB to locate them. With this setup, implementing object deletion is a matter of locating the object and marking it as deleted.

But a housekeeping issue remains. How do we handle garbage collection? Both deletion and data corruption will produce unused storage space, so we need a way to reclaim space that is no longer used. One solution is to periodically run a compaction process, which would:

• find the valuable sections of a set of read-only log files,
• write those valuable sections into a new log file,
• update object location details in the embedded DB, and
• delete the old log files.

S3 Intelligent-Tiering optimizes storage for rarely accessed data by automatically adjusting storage based on access patterns.

Similarly, versioning is a key feature of many S3 systems. With bucket versioning, we can store multiple versions of the same object in a bucket, and restore them - this prevents accidental deletes or overwrites. To some extent, versioning also lets us work around the immutability of the write-ahead log.

‍

To implement versioning, we can begin by adding a boolean is_versioning_enabled column to the buckets table and an integer version_id column to the objects table. At the time of insertion, instead of overwriting the existing row, we can append a new row with the same object.bucket_id and object.name as the existing row, but with a new object.id and an incremented object.version_id. With versioning enabled, deleting an object will mark the version with the highest object.version_id as deleted, and retrieving an object will look up its latest non-deleted version.

Multipart uploads are another common feature of S3 systems. With multipart uploads, we can upload objects in smaller parts, either sequentially or in parallel, and after all parts are uploaded, we reassemble the object from its parts. This is useful for large uploads (e.g. videos) that may take long and so are at risk of failing mid-upload. On upload failure, the client resumes from the last successfully uploaded part, instead of having to start over from the beginning. What could this look like?

‍

1. The client requests S3 to initiate a multipart upload for a large object and receives an upload_id, a reference to the current upload session.
2. The client splits up the object into parts (in this example only two, often more) and uploads the first part labeled as part_1, including the upload_id. On success, S3 returns an identifier (ETag, or entity tag) for that successfully uploaded part of the object.
3. The client repeats the previous step for the second part, labeled as part_2, and receives a second ETag.
4. The client requests S3 to complete the multipart upload, including the upload_id and the mapping of part numbers to ETags.
5. S3 reassembles the large object from its parts and returns a success message to the client. The garbage collector reclaims space from the now unused parts.

Going further with Amazon s3 storage

S3 systems are complex beasts - this discussion only touches on the bare essentials of how they work. We have explored how object storage compares to other storage types, what the core flows of S3 look like, and how to design a system to support them. We have also considered expansions to our system, such as data corruption verification, garbage collection, object versioning, and multipart uploads, and how to support them without compromising the core design.

To delve deeper into the inner workings of S3, consider:

• how to support automatic object expiration ("time to live"),
• how to list out all objects in a bucket or with a given prefix,
• how checksums can help verify the integrity of data uploads,
• how to efficiently paginate object listings from sharded databases,
• how erasure coding can contribute to data availability and redundancy.

S3 is the bedrock of cloud object storage. Learning about how it works, at both higher and lower levels, is a great way to become familiar with the core concepts behind highly available storage systems at scale.

‍
